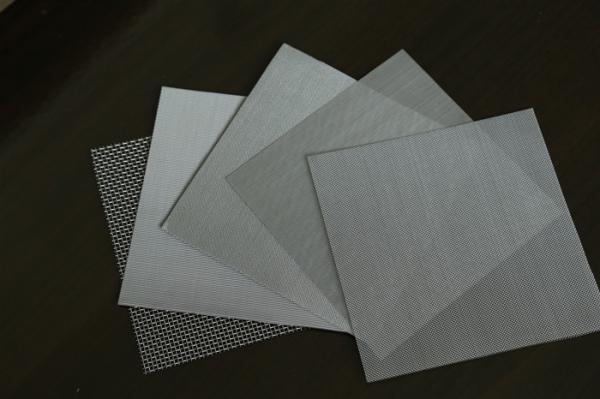

Structural Presision Stainless Steel Wire Mesh For Sieving And Filtration
Usage:Used for sieving and filtration in acid and alkali environment,as mus mesh in petroleum industry , as filter screen in chemical fiber industry ;used for mining industry,petroleum ,chemical industry,food ,medicine,machinery manufacturing and other industry.
Material: SUS302, 201, 304, 316, 310, 304L, 316L etc.
STAINLESS STEEL PLAIN WEAVE WIRE MESH
Plain weave is the most common weaving way,
Widely used in industrial production and civil life.
The main feature is the same wire diameter in warp and weft directions.
STAINLESS STEEL SQUARE WIRE MESH
Features:structural presision,aperture uniform,with good anti-corrosion characteristics and durable.
Widely used in industry and construction industry.filter sand ,liquid and gas.Can also be used for mechanical attachment security and so on.And it can be used for make walls and ceilings instead of wood strips.
STAINLESS STEEL DUTCH WEAVE WIRE CLOTH
Plain dutch weave,twill dutch weave,bamboo weave,reverse weave.Features:good filter precision,high load ,
Usage:for aerospace,petroleum,chemical ,scientific research and transportation industries.It can also make lunch box mesh ,coal washing mesh and so on.
1. PLAIN WEAVE
| mesh(inch) | wire diameter.(mm) | opening(mm) | material(AISI) |
| 2 | 1.800 | 10.900 | 304/316 |
| 2 | 1.500 | 11.200 | 304/316 |
| 3 | 1.500 | 6.960 | 304/316 |
| 3 | 1.200 | 7.260 | 304/316 |
| 4 | 1.200 | 5.150 | 304/316 |
| 4 | 1.000 | 5.350 | 304/316 |
| 5 | 1.000 | 4.080 | 304/316 |
| 5 | 0.900 | 4.180 | 304/316 |
| 6 | 1.000 | 3.233 | 304/316 |
| 6 | 0.800 | 3.433 | 304/316 |
| 7 | 0.800 | 2.828 | 304/316 |
| 7 | 0.700 | 2.928 | 304/316 |
| 8 | 0.800 | 2.375 | 304/316 |
| 8 | 0.600 | 2.575 | 304/316 |
| 10 | 0.600 | 1.940 | 304/316 |
| 10 | 0.550 | 1.990 | 304/316 |
| 12 | 0.600 | 1.516 | 304/316 |
| 12 | 0.550 | 1.566 | 304/316 |
| 12 | 0.500 | 1.616 | 304/316 |
| 14 | 0.550 | 1.262 | 304/316 |
| 14 | 0.500 | 1.312 | 304/316 |
| 14 | 0.450 | 1.362 | 304/316 |
| 16 | 0.500 | 1.088 | 304/316 |
| 16 | 0.450 | 1.138 | 304/316 |
| 18 | 0.500 | 0.910 | 304/316 |
| 18 | 0.450 | 0.960 | 304/316 |
| 18 | 0.400 | 1.010 | 304/316 |
| 20 | 0.500 | 0.770 | 304/316 |
| 20 | 0.450 | 0.820 | 304/316 |
| 30 | 0.350 | 0.496 | 304/316 |
| 30 | 0.300 | 0.548 | 304/316 |
| 30 | 0.250 | 0.596 | 304/316 |
| 35 | 0.300 | 0.425 | 304/316 |
| 35 | 0.250 | 0.475 | 304/316 |
| 35 | 0.230 | 0.495 | 304/316 |
| 40 | 0.250 | 0.385 | 304/316 |
| 40 | 0.200 | 0.435 | 304/316 |
| 40 | 0.180 | 0.455 | 304/316 |
| 50 | 0.220 | 0.288 | 304/316 |
| 50 | 0.200 | 0.308 | 304/316 |
| 50 | 0.180 | 0.328 | 304/316 |
| 60 | 0.190 | 0.233 | 304/316 |
| 60 | 0.180 | 0.243 | 304/316 |
| 60 | 0.160 | 0.263 | 304/316 |
| 70 | 0.140 | 0.223 | 304/316 |
| 70 | 0.120 | 0.243 | 304/316 |
| 80 | 0.140 | 0.178 | 304/316 |
| 80 | 0.120 | 0.198 | 304/316 |
| 90 | 0.110 | 0.172 | 304/316 |
| 90 | 0.100 | 0.182 | 304/316 |
| 100 | 0.110 | 0.144 | 304/316 |
| 100 | 0.100 | 0.154 | 304/316 |
| 120 | 0.080 | 0.132 | 304/316 |
| 150 | 0.063 | 0.106 | 304/316 |
| 165 | 0.060 | 0094 | 304/316 |
| 180 | 0.053 | 0.088 | 304/316 |
| 200 | 0.053 | 0.074 | 304/316 |
2. TWILL WEAVE
| MESH(INCH) | WIRE DIA(mm) | OPENING(mm) | MATERIAL(AISI) |
| 250 | 0.040 | 0.061 | 316 |
| 300 | 0.040 | 0.045 | 316 |
| 325 | 0.035 | 0.038 | 316 |
| 400 | 0.030 | 0.034 | 316 |
| 450 | 0.028 | 0.028 | 316 |
| 500 | 0.025 | 0.026 | 316 |
3. DUTCH WEAVE
| MESH(INCH) | WIRE DIA(mm) | MATERIAL(AISI) |
| 12x64 | 0.58x0.40 | 304/316 |
| 14x88 | 0.50x0.33 | 304/316 |
| 24x110 | 0.35x0.25 | 304/316 |
| 30x150 | 0.23x0.18 | 304/316 |
| 50x250 | 0.14x0.11 | 304/316 |
| 80x700 | 0.10x0.08 | 304/316 |
| 165x800 | 0.071x0.04 | 304/316 |
| 1651400 | 0.06x0.04 | 304/316 |
| 200x1800 | 0.05x0.032 | 304/316 |
| 325x2300 | 0.035x0.025 | 304/316 |
| 400x2800 | 0.030x0.020 | 304/316 |
